Functions:

automatic buckle feeding, automatic thread trimming, automatic needle stopping, automatic thread clamping, automatic refueling, LED light

Features：

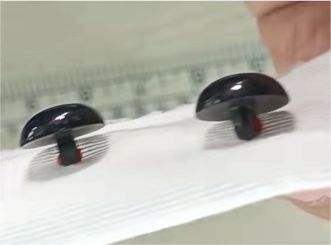

•Capable of sewing 90% of the market's stand buttons (button sewing), with a sewing range of 9mm to 25mm.
•Electric adjustment for different button heights during changeovers.
•Imported pneumatic components ensure stable and reliable performance.
•Reasonable design ensures high button-feeding success rate and fast operation speed.

Automatic Button Feeding Unit Specifications:
Applicable Stand Button Size    ：9 - 25 mm
Feeding Speed    ：25 - 33 pcs/min
Voltage    ：200 - 240 V
Frequency    ：50 / 60 Hz
Air Pressure    ：0.35 - 0.4 MPa
Compatible Machine Models    ：373D, etc.
Dimensions (LWH)    ：575 * 575 * 480 mm
Net Weight / Gross Weight    ：35 Kg / 45 Kg
