Functions: Automatic feeding,auto cutting, auto folding,auto bartacking,auto waste removal.

Application: For sewing jeans and casual trouser ears.

Features：

• The self-developed double-needle automatic belt loop seeter machine can be used for one-time formaing of jeans and and casual pantsbelt loop, which is easy to operate and save time.
• Easy to operate, automatic feeding, cutting, folding and bartacking are completed in one time.

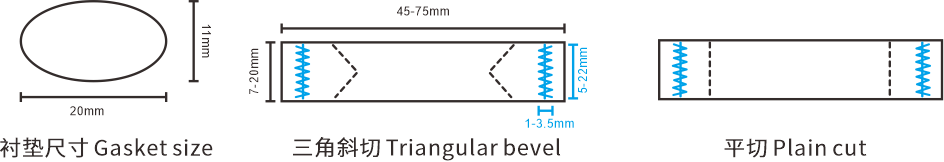

• Multiple cutting options, flat or triangle cut at the end of the trouser.
•  Automatic removal of waste, with automatic detection and screening of waste at the trouser loop joints.
• Low impact and vibration compared to air tube feeding, adjustable feeding speed and adjustable feeding position parameters for easy adjustment and maintenance when replacing trouser ears!
• Computerised automatic adjustment of the main precise data for hook needle guage, trouser loop length, trouser ears length and waste detection.
• Loop cutting,basrtacking,carring will be completed by one machine and save 4 workers,which greatly increases production efficiency.
• The frame height can be adjusted and the frame height adjustment mechanism can be adapted to different working environments and working groups.

Parameter

Needle ：DP*17  19#-21#
Belt loop length：45-75 mm
Belt loop width：9-20 mm
Reinforced seam length：5-20mm
Reinforced seam width：1.0-3.5mm
Preset patterns：3
Max speed：2700rpm
Voltage：AC 220V
Air pressure：0.5mpa 1.8l/min
Volume：1200*920*1360mm
G.W/N.W：275/230kg
